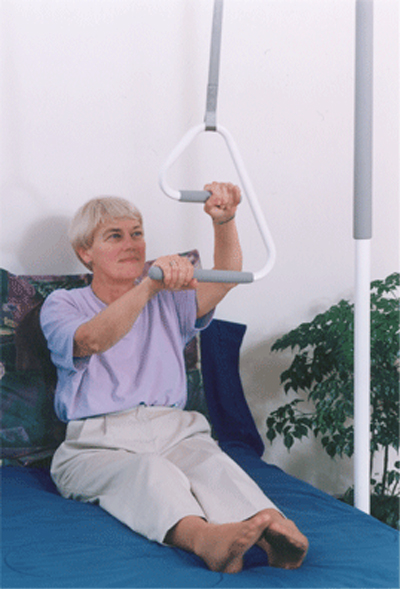

SuperPole TM with SuperTrapeze TM
Details
Innovative.
Unlike conventional triangle trapeze handles, the SuperTrapezeTM handle simulates two rungs on a ladder.
Allows for improved use of arm strength to "climb up" to a seated position.
Optimizes Space.
Conventional trapeze floor stands can force the bed away from wall, reducing valuable floor space. SuperPoleTM with SuperTrapezeTM installs beside the bed and requires less than 5" / 13 cm of floor space.
Adjustable.
The trapeze support arm and nylon strap are height adjustable.
For easy storage, simply hook the trapeze handle onto the SuperPoleTM.
| Technical Specifications | |
|---|---|
| SuperTrapezeTM | 0.875" / 2.22 cm diameter rail. Strap range 42-70" / 107-178 cm from ceiling. |
| Trapeze Handle Grips | 6.25" / 16 cm and 10.25" / 26 cm. |
| Support Arm | 17" / 43 cm length. Recommended 84" / 213 cm from floor. |
| Strap Range | 29" / 74 cm. |
| SuperPoleTM | 90" / 229 cm x 1.5" / 3.81 cm diameter. White powder coated steel. |
| Grip Length | 20" / 51 cm. Washable, latex free grip. |
| Floor to Ceiling Range | 93-99" / 236-253 cm (standard). |
| Expansion Mechanism | 1-1/8" fine cut thread. Zinc plated steel jackscrew. |
| Top Plate | 20" / 51 cm length. Top plate rubber will not mark ceiling. |
| Base Plate | 5" / 13 cm diameter. Non-marking, base plate rubber ribbed for better gripping. |
| Weight Capacity | 300 lbs / 136 kg. Bariatric weight capacity 450 lbs / 205 kg. |
