Details

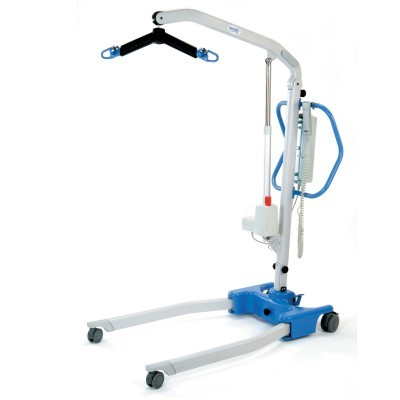

The Advance^TM patient lift from Hoyer represents a true step forward in patient lift design and performance. It uses the very latest design and manufacturing technologies to ensure the Advance is the most functional and stylish lift in its class today. The Advance's unique swan-neck leg design represents a true step forward in patient lift design and performance. It can get close to even the widest of obstacles yet folds simply and completely for storage. And its 17.7" minimum height allows it to transfer from the floor to the bed with ease.

• Folds for easy transport and storage.
• Oversized handle for increased control.
• Swan neck leg design accomodates larger furniture.
• Requires no bending to operate.
• Rechargable battery
• 1 year LTD warranty

Specifications

Safe Working Load: 340 lbs

• Overall length: 4ft 1in - 4ft 3in
• Overall Height: 4ft 5.5in - 5ft 11in
• Folded Height: 1ft 5in
• Folded Depth: 3ft 10in
• Folded Width: 1ft 10in

• Spreader Bar Maximum Height: 5ft 4.5in
• Spreader Bar Minimum Usable Height: 1ft 3in
• Spreader Bar Height at Maximum Reach: 3ft 9in
• Spreader Bar Reach at Maximum Height: 2ft 4in
• Spreader Bar Reach at Minimum Height: 1ft 7in
• Spreader Bar Maximum reach: 2ft 9in
• Spreader Bar Turning Radius: 3ft 5in

• Leg Open External Width: 3ft 8in
• Leg Open Internal Width: 3ft 10in
• Leg Closed External Width: 2ft 1in
• Leg Closed Internal Width: 1ft 10in
• Leg Overall Height of Legs: 4.5 in

• Ground Clearance: 1.2 in
• Front Twin Casters: 3.3 in
• Rear Braked Casters: 4 in

• Mast, Base & Boom Assembly: 64 lbs
• Power Pack (electric model only): 5 lbs
• Total: 69 lbs
• Base Assembly (not incl. battery): 33 lbs
• Boom (not incl. battery): 31 lbs

• Batteries: 2 x 12 volt rechargeable sealed lead acid type
• Battery capacity: 3.2 ampere hours
• Charger rated input: 230Vac 50/60Hz
• Charger rated output: 27.4/29.0 VDC@0.8A
• Charger: Class II

• Lift: Internal Power Source
• Charger - Type: B
• Lift - Type: B
• Sling Use/Type: Hoyer Grey Looped
